See Every Angle. Understand the Context. Respond from Anywhere.
Cupola360 Patrol transforms 360° site visuals, spatial context, AI model results, visual overlays, and connected device information into one remote management workspace — helping teams inspect facilities, verify events, coordinate response, and review operations from anywhere.
3
How Patrol Works
A software layer for 360° immersive monitoring, patrol, and review
1
Connect 360° Site Visuals
Connect compatible Cupola360 360° cameras and selected visual input sources depending on configuration.
2
Map Spatial Context
Place cameras and visual sources on floor plans to connect live views with the physical layout of the site.
3
Configure Patrol Workflows
Set patrol routes, viewing angles, keyframes, OSD information, trigger actions, and playback settings.
4
Inspect, Verify, and Respond
Review live visuals, AI model results, recordings, overlays, and device information from one remote management workspace.
Core Platform Features
Turn 360° Site Visuals into Remote Management Workflows

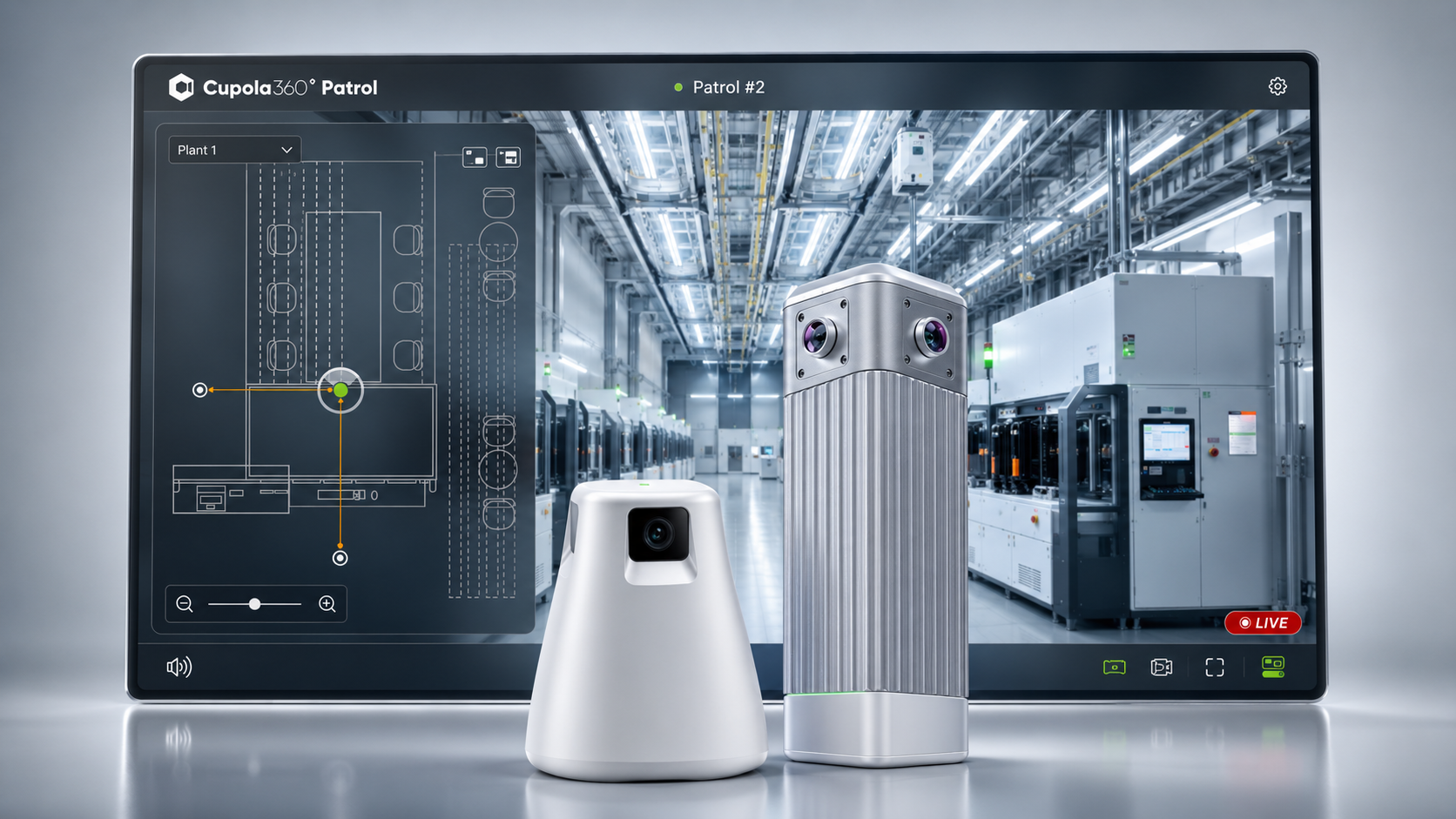

Immersive 360° Site Awareness
Powered by Cupola360 360° cameras, Patrol lets operators remotely look around, move between site locations, and inspect with spatial context.

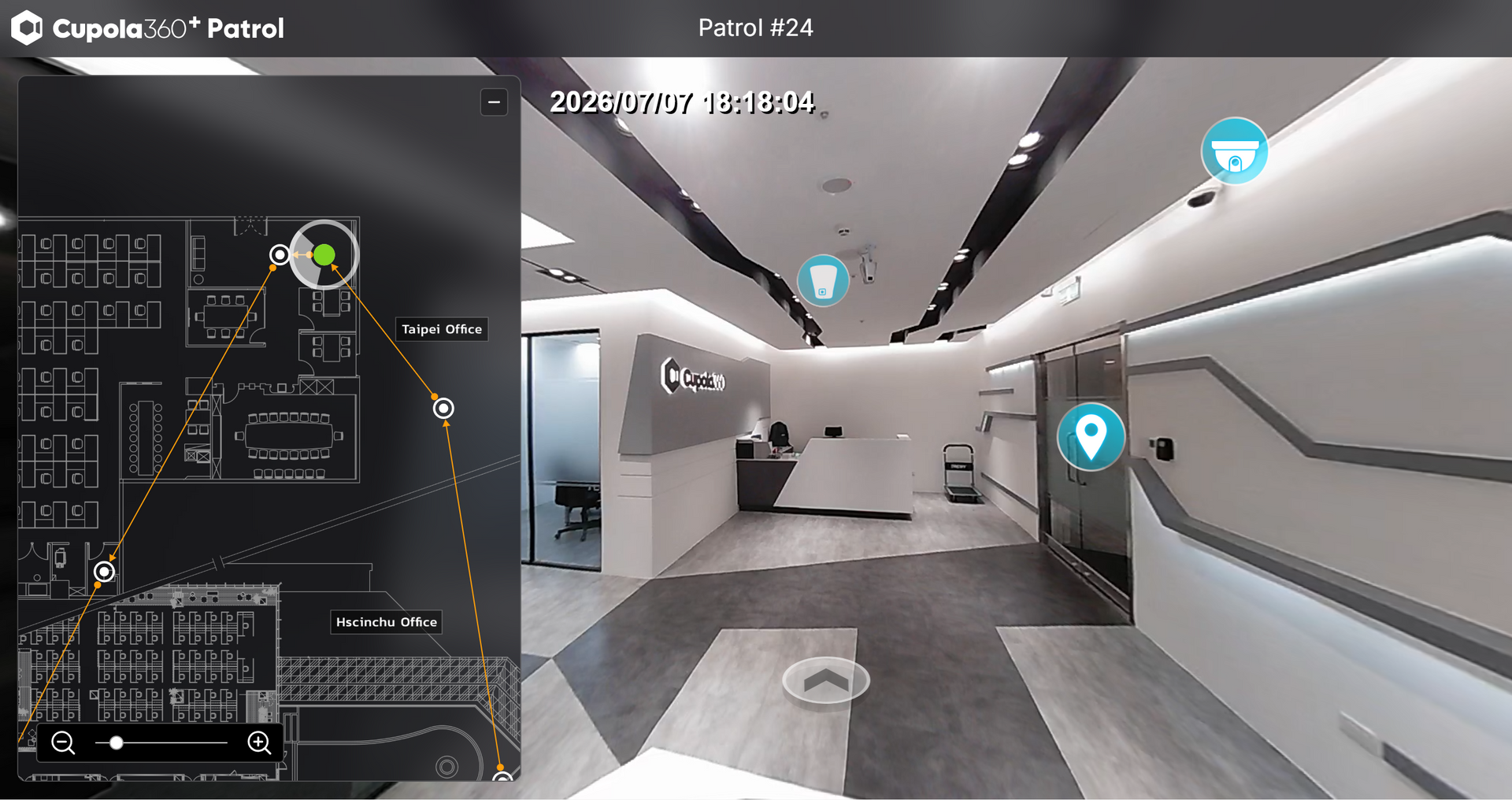

Floor Plan Integration
Upload floor plans and place cameras anywhere on the map for clearer deployment and monitoring.
Custom Patrol Routes
Create patrol workflows based on deployed 360° cameras, with configurable viewing angle, time, and route.
Recording & Playback
Record 360° video streams and review playback in the same immersive viewing experience.
Multi-view Monitoring
Monitor multiple camera views with flexible display modes, such as 1x1, 2x2, 3x3, and 4x4 layouts.
OSD, PIP-style Display & IoT Integration
Add OSD overlays, API data, PIP-style panels, and IoT-integrated status or action displays directly on top of the video view.
Patrol Workflow Capabilities
Explore how Patrol connects visual context, patrol routes, AI events, and IoT response into remote management workflows.
Visual Context
Patrol Routes
AI Event Processing
IoT and Remote Response

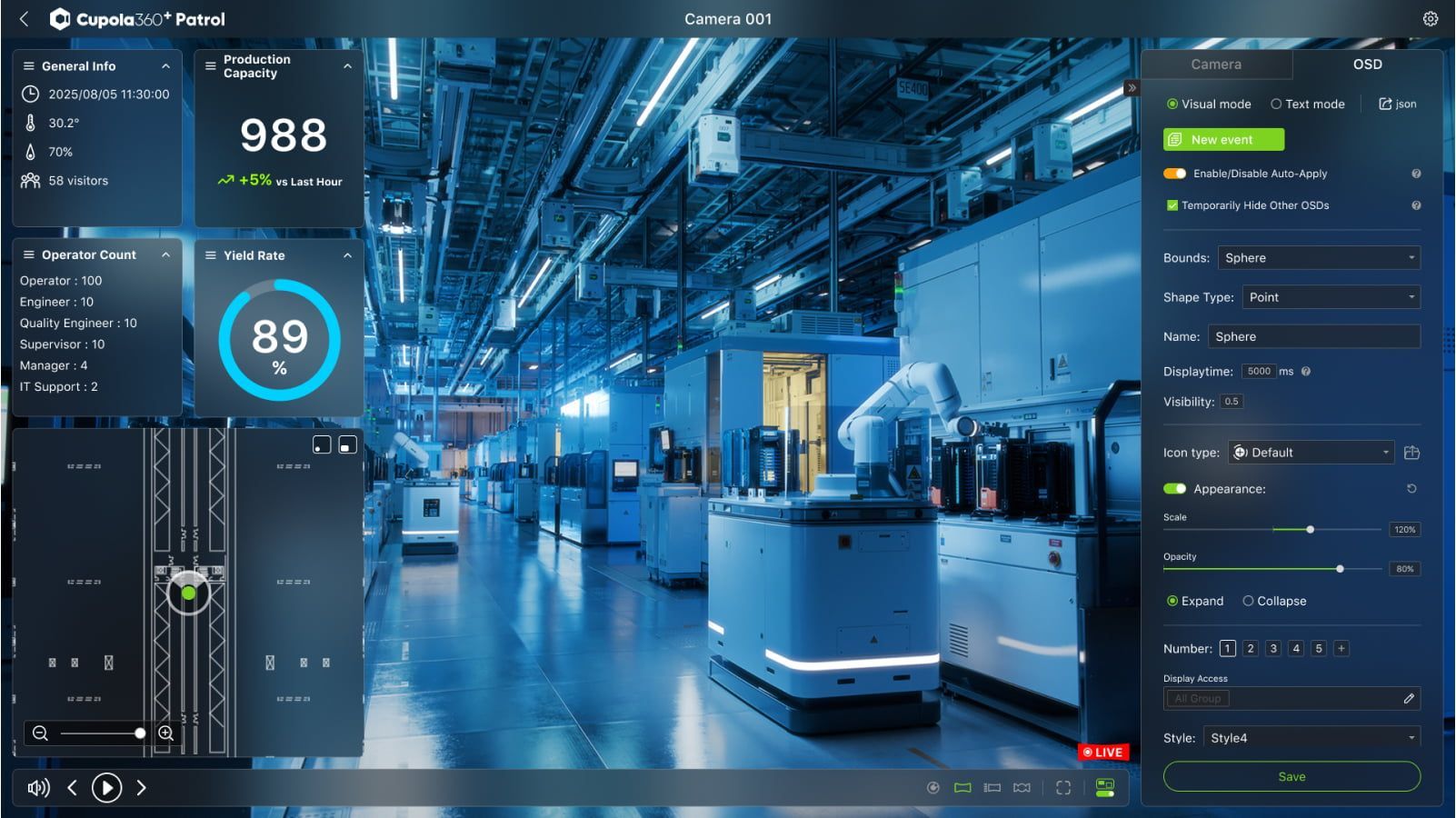

Patrol brings 360° views, OSD overlays, PIP-style panels, API data, AI model results, device status, and floor plan context into one visual interface — helping operators understand what is happening without switching between separate systems.
- 360° live view with visual context
- OSD overlays for text, image, video, iframe, and API data
- PIP-style panels for secondary information
- Integration with AI events, device status, and external data through open-platform workflows
Turn live views into operational context
Create repeatable visual inspection workflows.
Create repeatable visual inspection workflows with configurable routes, viewing directions, and playback settings.
- Create patrol paths between deployed cameras
- Configure viewing angle, pitch, and playback flow
- Support retrace patrol and single-camera patrol
- Fine-tune routes with keyframe editing

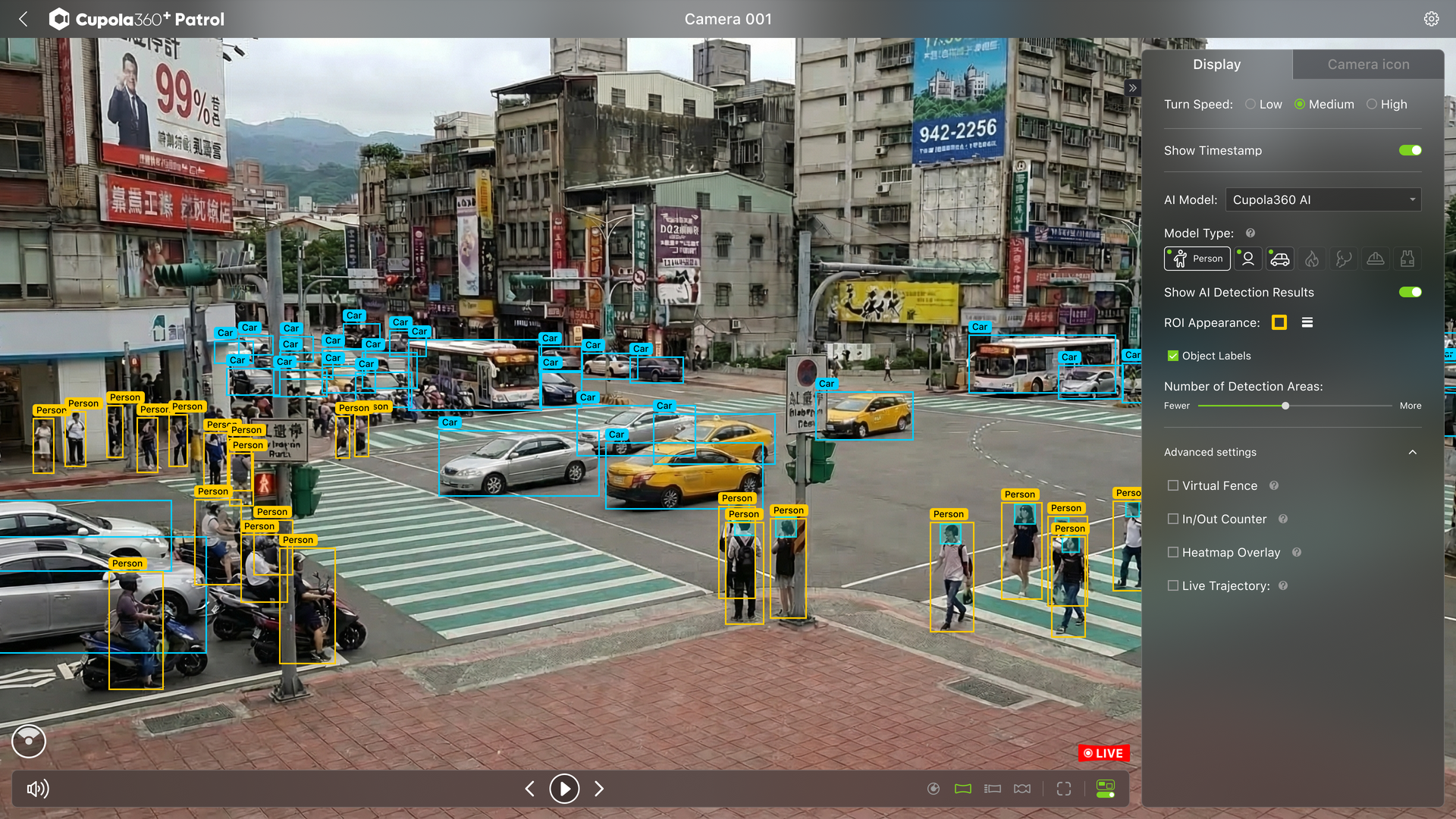

Use selected AI modules to analyse camera streams and present event results directly within Patrol.
- AI-assisted event workflows inside Patrol
- Event review with 360° live view or playback
- Support for selected detection categories
- Flexible deployment depending on configuration
*Available AI capabilities may vary depending on software version, camera model, deployment environment, and configuration.
Bring AI events back into spatial context.
People Flow Detection
Monitor movement patterns across selected areas.
Vehicle Flow Detection
Monitor movement patterns across selected areas.
PPE Detection
Support helmet and safety vest detection workflows.
Intrusion / Virtual Fence Detection
Detect entries into defined areas or virtual boundaries.
Smoke Detection
Support smoke event awareness and visual review.
Crowd Density Heatmap
Visualise activity hotspots and crowd concentration.

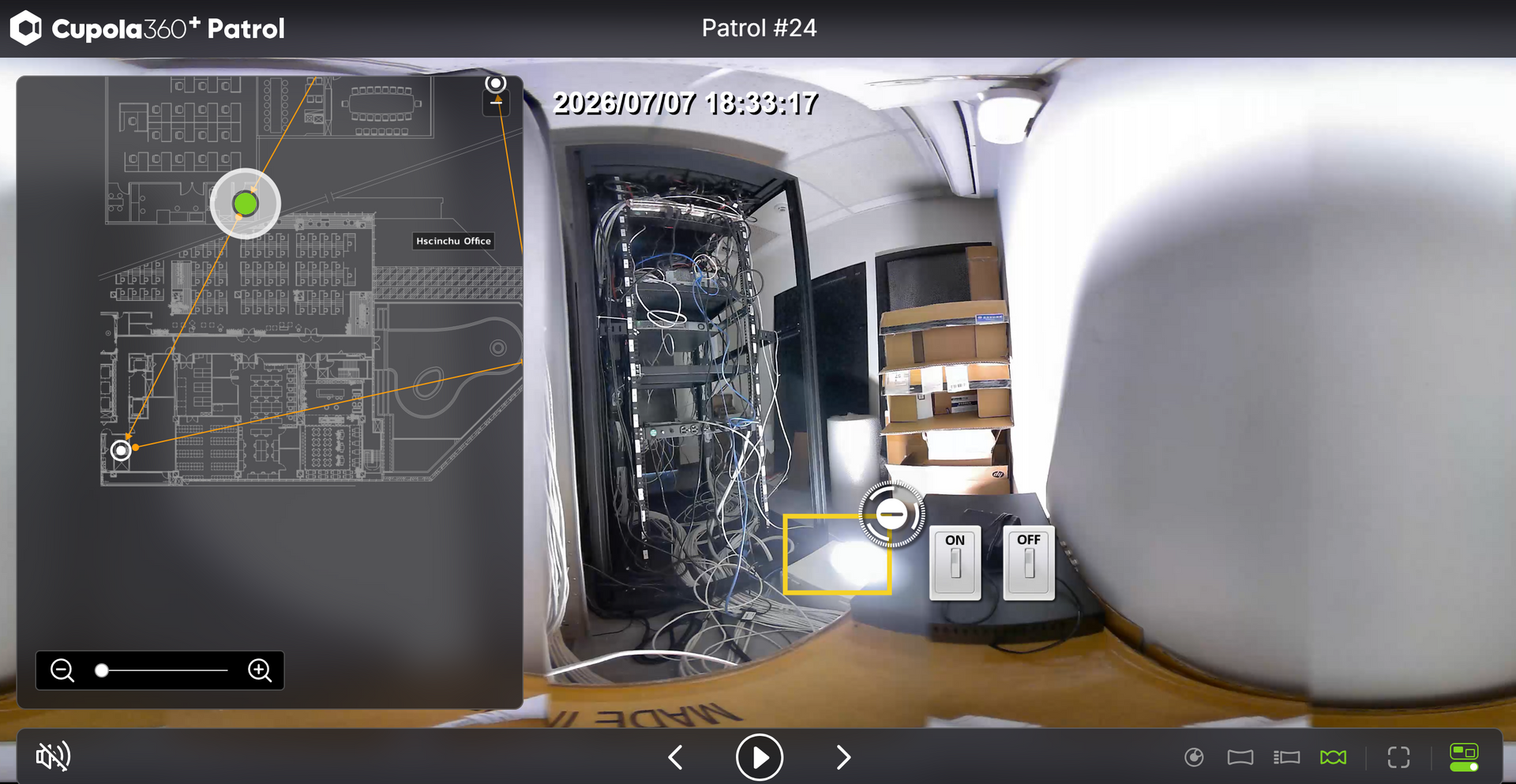

Connect what operators see with what they can do.
Connect visual monitoring with selected devices and site operations for faster remote response..
- Control selected connected devices from Patrol
- Support remote actions such as lights, alarms, or switches
- Display IoT status and API data within the interface
- Connect monitoring with response workflows
Technical Highlights
Key specifications, supported functions, and deployment input options.
1. Platform Capabilities
| Category | Patrol Capability |
|---|---|
| Platform Type | Downloadable visual Patrol software |
| Camera Input | Compatible Cupola360 cameras; selected RTSP / RTMP stream sources depending on configuration |
| Site Setup | Site creation, floor plan upload, camera placement |
| Floor Plan Management | Duplicate, replace, search, and reorder floor plans depending on Patrol version |
| 360° View | Live 360° viewing from supported Cupola360 camera streams |
| Multi-view Display | 1x1, 2x2, 3x3, 4x4 display modes |
| Auto Viewing | 360° auto rotation and auto page switching |
| Patrol Route | Multi-camera patrol path, single patrol, retrace patrol, route playback |
| Keyframe Editing | Yaw / pitch adjustment, keyframe replacement, insert, delete, rotation direction |
| Turn Speed | Low 15°/s, Medium 30°/s, High 60°/s |
| Recording / Playback | 360° recording and playback review |
| Snapshot | Camera snapshot during patrol playback with supported firmware and configuration |
| OSD Content | Rich text, image, video, iframe, API button |
| OSD Modes | Visual Mode and Text Mode |
| OSD Export | Export selected OSD in JSON format |
| IoT / API | Supported protocol or API-based integration depending on project configuration |
| User Roles | Admin, General, Guest |
| Camera Management | Camera groups, auto scan, edit, delete, check for updates |
2. Supported Visual Input Sources
| Input Source | Usage in Patrol |
|---|---|
| Cupola360 360° Cameras | Primary input source for immersive 360° monitoring, patrol routes, recording, playback, floor plan deployment, and visual patrol workflows. |
| Traditional IP Cameras / CCTV / OSD Camera Views | Selected traditional camera streams, CCTV feeds, or OSD camera views can be displayed in Patrol through supported stream inputs or project-based configuration, providing supplementary visual context alongside 360° views. |
| Virtual 360° Cameras | Selected 360° video sources can be added as virtual 360 cameras, allowing users to review or demonstrate spatial scenes with a navigable 360° viewing experience similar to a live 360 camera. |
| Mobile 360° Camera Setups | 360° cameras can be integrated with mobile platforms such as robots or unmanned systems, allowing Patrol to support route-based mobile inspection workflows depending on project configuration. |
FAQs
Find answers about Patrol access, camera compatibility, AI modules, and project-based deployment.
What is Cupola360 Patrol?
Cupola360 Patrol is a spatial visual platform for Reality Remote Management. It brings 360° site visuals, spatial context, visual overlays, AI model results, recording playback, and connected device information into one remote management workspace, helping teams inspect sites, verify events, coordinate response, and review operations from anywhere.
Is Patrol a camera product or software platform?
Patrol is a software platform designed to work with compatible Cupola360 360° cameras and selected visual input sources. Cupola360 cameras provide the core 360° site visuals, while Patrol turns those visuals and related site information into remote management workflows.
What visual input sources does Patrol support?
Cupola360 Patrol is primarily designed for Cupola360 360° camera streams. Patrol can also display selected IP camera / CCTV streams through RTSP / RTMP protocols, support OSD-based visual sources, and work with virtual 360° video or mobile 360° camera setups depending on configuration and project requirements.
Does Patrol support OSD overlays and IoT integration?
Yes. Patrol supports OSD overlays such as text, images, videos, iframe content, API data, and PIP-style panels. Depending on project configuration, Patrol can also display IoT status or connect with selected device action workflows through supported protocols or API-based integration.
Does Patrol include AI detection?
Patrol is designed to support AI-assisted event workflows through selected AI models. Available AI detection capabilities may vary by software version, camera model, deployment environment, model readiness, and project configuration. We recommend validating the AI workflow through a demo or pilot deployment before full-scale implementation.
Can AI models be customized in Patrol?
Selected AI models and project-based AI workflows can be evaluated based on the use case. Custom AI availability depends on the deployment environment, camera placement, data conditions, model readiness, and project scope. For best results, we recommend validating the AI workflow through a demo or pilot deployment before full-scale implementation.
How is Patrol provided?
Cupola360 Patrol is currently provided with selected Cupola360 camera deployment packages. Eligible camera packages include one year of Patrol software access. Standalone online purchase is not currently available. Available features, service scope, and deployment options may vary depending on camera model, software version, project configuration, and deployment requirements.
Ready to manage your sites with 360° visibility?
Cupola360 Patrol helps connect panoramic camera streams, AI events, IoT status, and visual overlays into one remote visual patrol workflow
